Products Introduction:

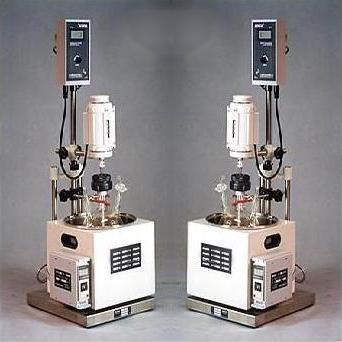

 HR Series glass reactor / multi-function vacuum temperature reactor / multi-function reactor temperature conditions in various biochemical reactions and reaction。equipment is the whole closed system,continuous negative pressure can be used all kinds of liquid or gas inhalation,can also be taken except at different temperatures back or distillation。
Features:
★Special long-life mixing closures, vacuum up-0.096Mpa;
★Intelligent water (oil) bath heating, room temperature -180 ℃, temperature fluctuation is only ± 0.2 ℃;
★Material only contacts with the GG17 glass and PTFE, non-polluting。
Large-scale multi-reactor:
▲Large-scale multi-reactor (50L) with the original two national patents company, unique design, distinctive features;
▲Large-scale multi-functional reactor feeding large diameter mouth, under the entrance and exit. Charging, discharging, cleaning without moving reaction bottle. Easy operation, safety;
▲Large-scale multi-functional automatic reverse tilt reactor mixing, producing three-dimensional flow, mixing more fully, can shorten the reaction time;
▲All large-scale multi-functional reactor discharge valve PTFE increases with anti-product plug, effective solution to lower the dead material and response conflict;
▲Response to large-scale multi-functional reactor, heating, cooling, stirring, reflux, distillation integrated design, compared with similar devices, small footprint, cost-effective;
▲Large-scale multi-functional reactor for mixing the seal design, allow to work long hours。

技术参数

Model

HR-2

HR-5

HR-20

HR-20A

HR-50A

Basic parameters

Reaction flask (L)

2L

5L

20L

20L

50L

Bottle number

4

4

5

6

6

Mixing power (W)

90W

120W

250W

250W

250W

Speed range (rpm)

60-1300

40-1700

40-720

40-720

40-720

Mixing Shaft (mm)

¢ 6mm

¢ 10mm

¢ 10mm

¢ 10mm

¢ 12mm

Bath pan

1.5kw/180℃

2kw/180℃

3kw/180℃

3kw/180℃

6kw/180℃

Supply voltage (V)

220V

220V

220V

220V

380V

Dimensions (cm)

36×30×90cm

39×33×100cm

55×55×120cm

55×55×130cm

65×65×160cm

Function Deployment

Frequency

/

Vacuum sealing

±0.2℃Fluctuation

bath pot of put liquid

PTFE stirring rod

Discharge piston

Temperature control

Reflux condensation

Distillation collection

/

Vacuum Table

/

Tilt-dimensional mixing

/

/

Automatic positive and negative mixing

/

/

Multi-port

/

/

Under a gate

/

/

/

Discharge piston

/

/

/

Bath lid

/

/

Bath pan plug

/

/

/

Low by force

/

Cooling coil

/

/

5L dropping

/

/

1L dropping

/

Higher chassis

/

/

/

/

Explain

● basic configuration, ○ optional, * where there are special requirements can be customized, HR-5 and HR-2 form similar
